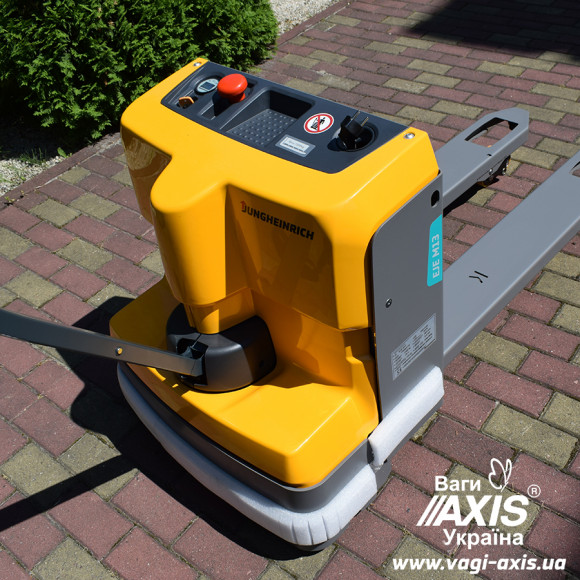

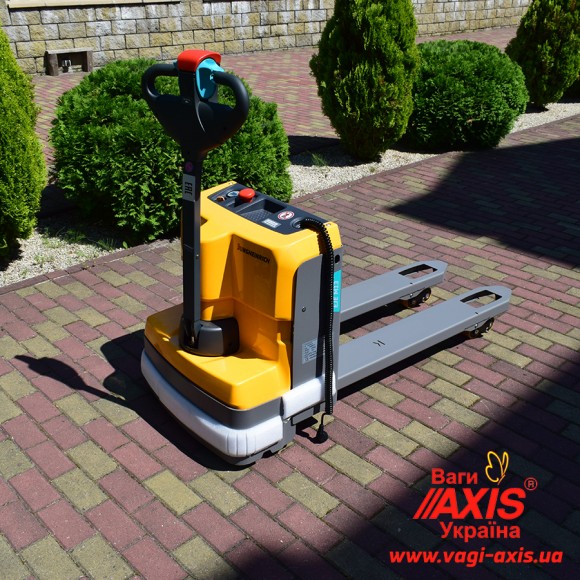

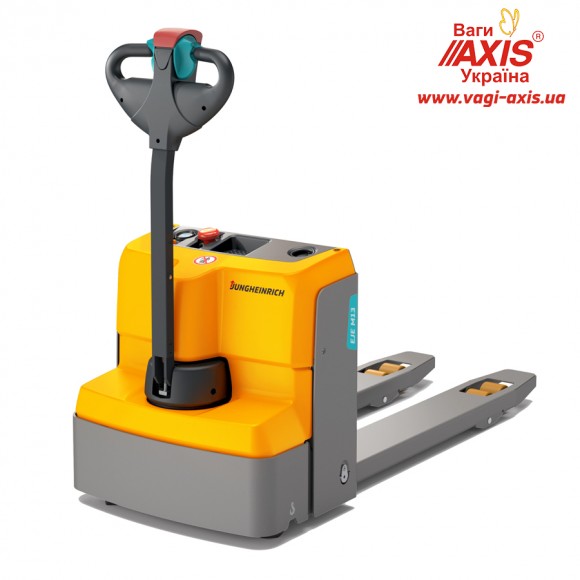

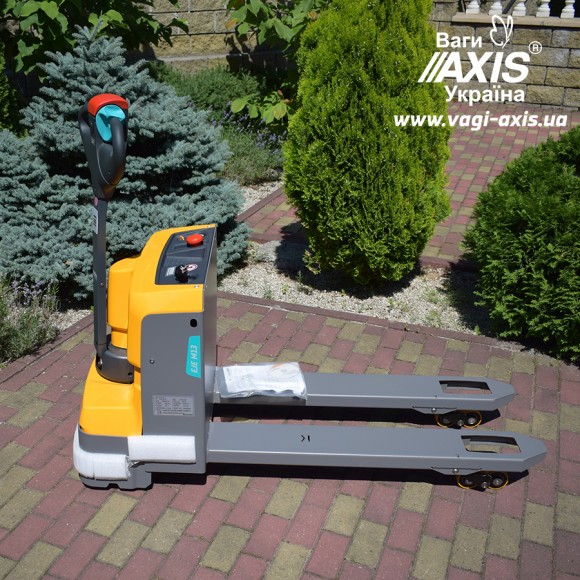

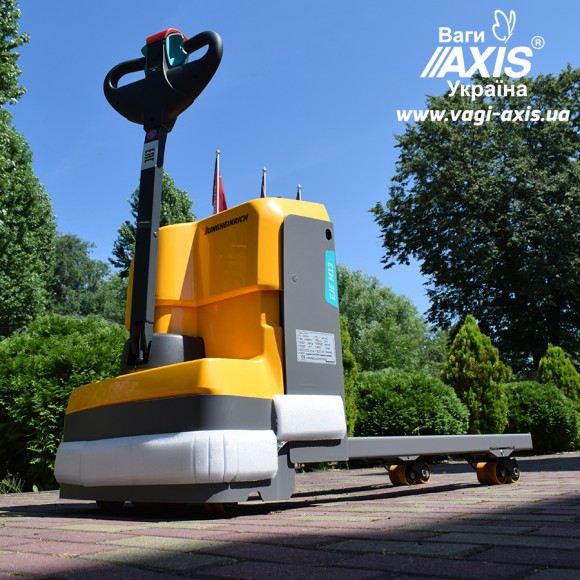

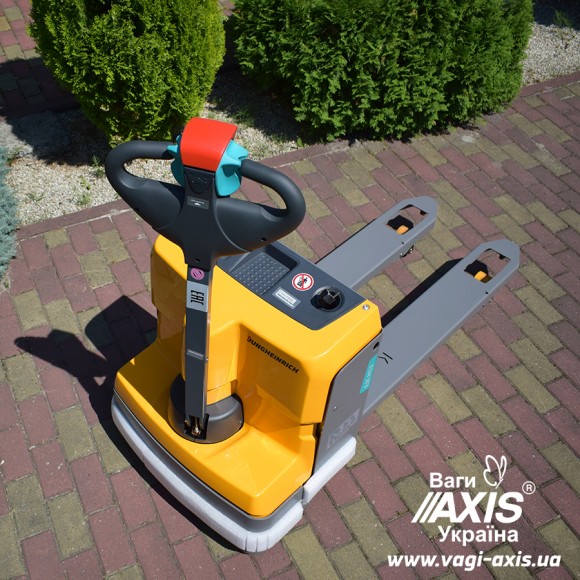

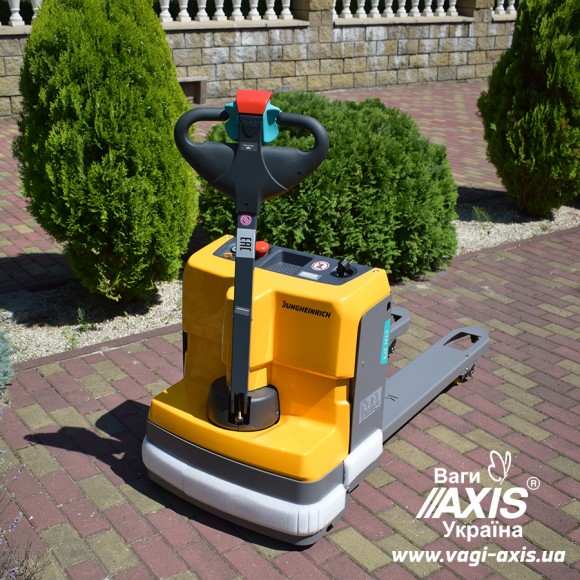

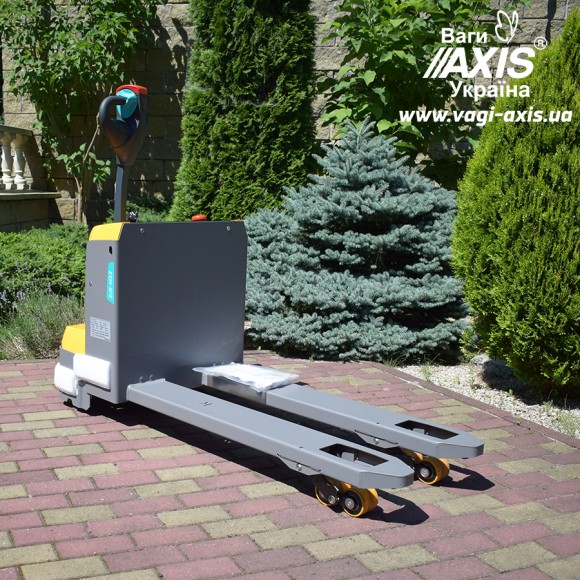

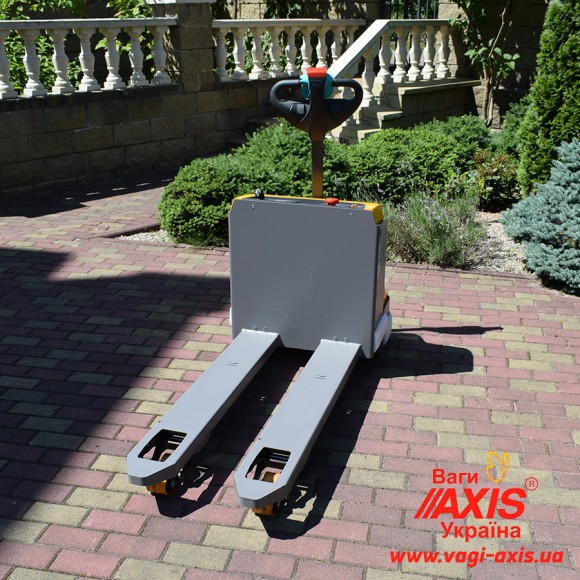

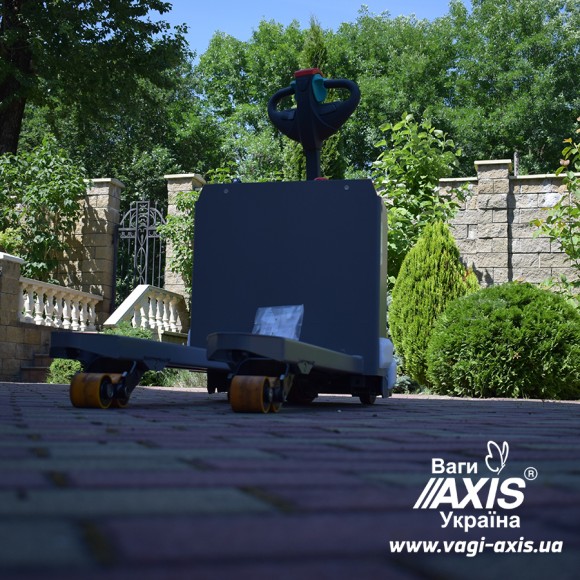

Electric rocker self-propelled EJE M13 (1300kg.)

Electric self-propelled rockers EJE M13 and EJE M15 are specially designed for the transport of light goods within the enterprise. A traction motor with a capacity of 0.6 kW provides transportation of pallets and goods with a weight of up to 1500 kg for short distances. Therefore EJE M13 and EJE M15 are perfectly adapted for use in small and medium-sized enterprises for occasional transportation of goods.

Innovationdrive technology and management systemsand I:  1) Motors with three-phase current technology in combination with the control system developed by us have increased productivity while reducing operating costs. 2) High efficiency and excellent power management. 3) Rapid change of direction without delay. 4The tandem motor does not require maintenance, since it does not have carbon brushes.

Energy-efficient use:  1) Cost-effective energy management increases efficiency, and also protects the battery pack and components. 2) Intelligent automatic shutdown system: after 30 minutes without using the device, the device automatically turns off. 3) Energy recovery due to generator braking with reduced speed.

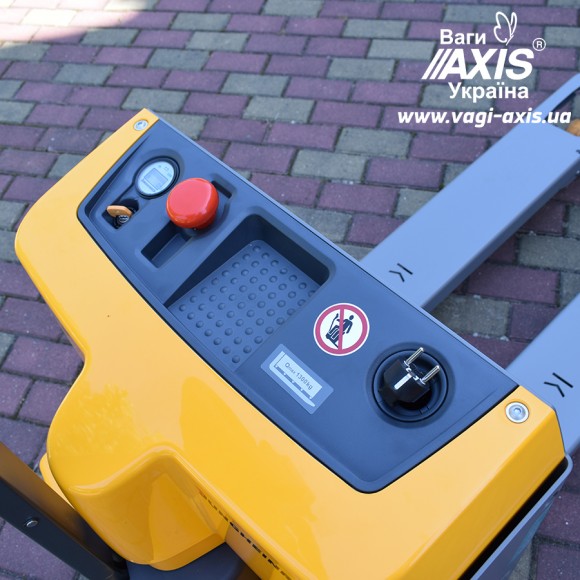

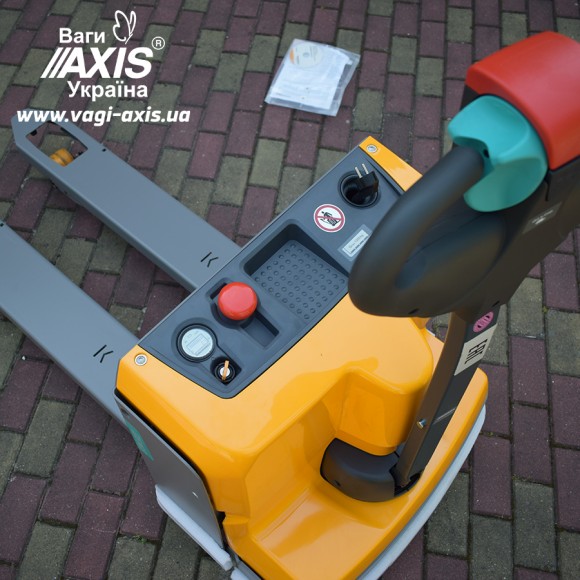

Compact design:  1) Thanks to the compact design, the EJE M13 and EJE M15 are ideally suited for operating in the most confined space. 2) Extremely high maneuverability due to short front end and low overall height. 3) The central location of all important control devices, namely the battery charge indicator, operation time meter, emergency stop switch and key. 4) There is little storage space due to the compact design.

Ergonomic work:  1) Vehicles are optimally adapted to meet the needs of the operator associated with ergonomics. 2) Reduced the force that must be applied when driving, thanks to the use of a long-connected long handle. 3) The control handle with the ability to work with both right and left hand provides a high level of user-friendly operation, protects health.

Safe management:  1) Various measures to improve the safety situation reduce the likelihood of injury to the operator and therefore provide an increased level of safety. 2) The probability of injury in the foot zone is reduced due to low ground clearance, only 35 mm. 3) Additional protection thanks to the completely closed housing, in particular the closed hydraulic cylinder.

Technical indicators

• Rated carrying capacity: 1300 kg
• Lifting height (h3) 122 mm
• Distance to center of gravity (s): 600 mm
• Total width (b): 650 mm
• Fork height in lowered state (h 13): 85 mm
• Fork length (l): 1150 mm
• Width of forks on the outside: 540 mm
• Overall length (L): 1585 mm
• Working width of travel (Ast)

europallets along: 1843 mm

• Turning radius (Wa): 1357 mm
• Travel speed with / without load: 4,5 km / h
• Weight incl. acb 214/219 kg.
• Battery gel 24V / 65 Ah | 24V / 90 Ah

• Charger built-in with charging time up to 12 hours

The specification includes:

• AC motor - 0.6 kW
• DC boom motor - 1.2 kW
• The driving wheel is polyurethane
• Freight wheels - polyurethane "tandem"
• Indicator of battery discharge (LED), hour meter
• Cart control keys on both sides of the leash
• Integrated charger
• Battery 24 V 65/90 Ah
• Activating the machine with a key

• Certificate of origin
• Certificate of conformity
• User's manual
• Staff briefing
