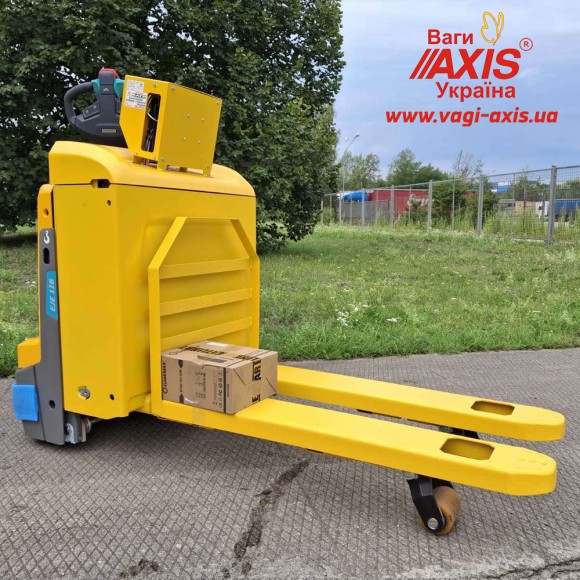

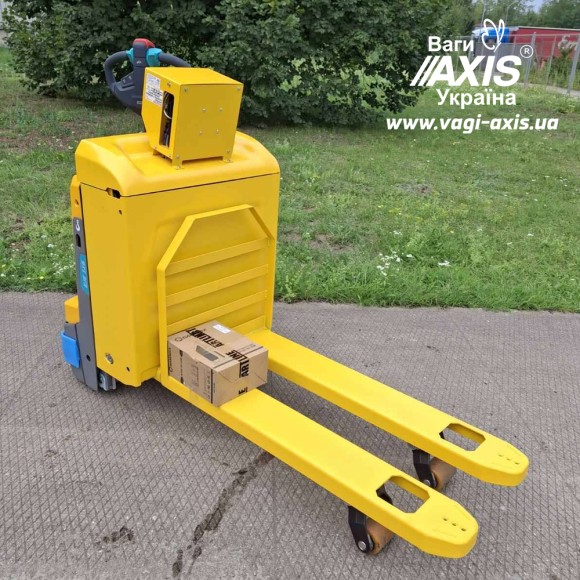

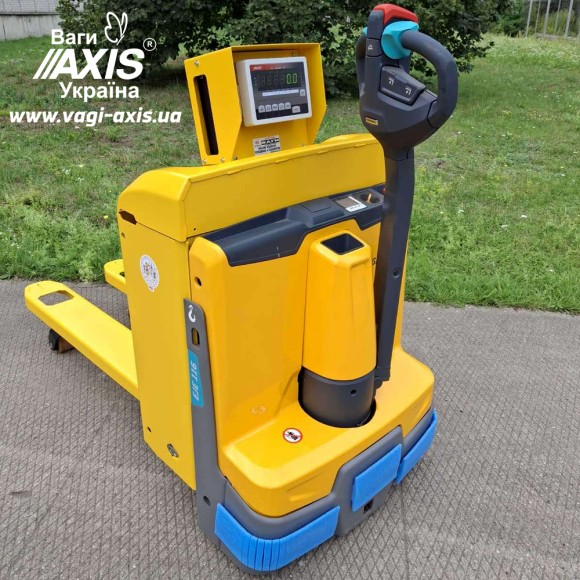

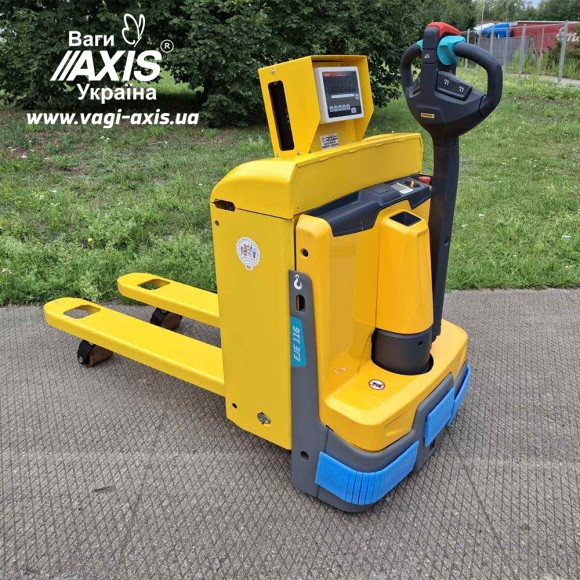

Self-propelled pallet truck with scales 4BDU1000Р-С-П Practical
- Overview
- Characteristics
- Reviews0
Self-propelled pallet truck with scales 4BDU1000P-C is the best choice for weighing loads up to 1000 kg directly during their transportation. The scales consist of a self-propelled pallet truck (provided by the customer or purchased), four load cells with protection class IP68, a junction box and a weight processor. The price is indicated for modification.
Technical characteristics
| Scales model | Weighing capacity range, kg | Accuracy (d), g | Size of platform, (WхL), mm |
| 4BDU1000Р-С | 10-1000 | 200/500 | 540х1150 |
The standard list of features
- Auto zero function;
- Autonomous power supply ~ 20 h. of work;
- Polyurethane wheels;
- Calibration for the entire range;
- Function of inscribing "permanent" tare value;
- Function of temporary improvement of readability, the [HR] button;
- Function of selecting work with a printer or a computer (RS232C);
- TOTAL (summation) function.
Versions
Budget: the cells (steel with nickel coating) with protection class IP68 Keli. The weight processor Axis-01A (the digits 18 mm high, LED, IP54). Autonomous power supply ~ 20 h.
Practical: the cells (steel with nickel coating) with protection class IP68 Keli. The weight processor ME-01 / A / LCD / 18 / RS / VK AKU (the digits 18 mm high, LСD, IP65). Autonomous power supply ~ 80 h.
| accuracy, g | 500 |
| maximum load, kg | 1000 |
| variants of execution | PRACTICAL |
