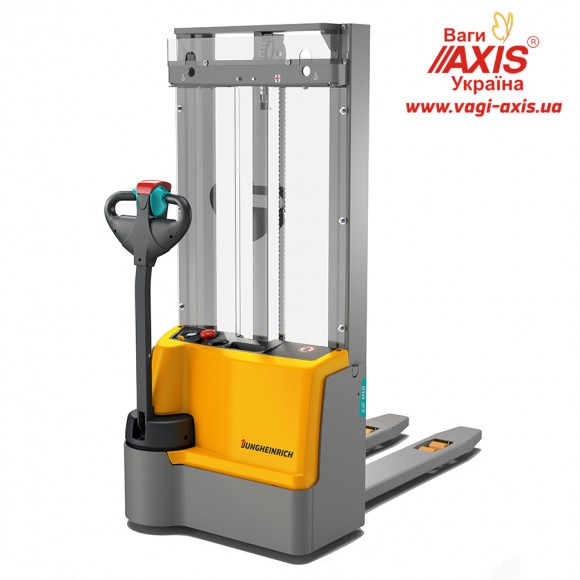

Stacker electric self-propelled EJC M13 ZT (1300 kg.)
- Overview
- Reviews0
EJC M13 ZT is specially designed for the transport of light goods within the enterprise. A traction motor with a capacity of 0.6 kW provides transportation of pallets and goods with a weight of up to 1300 kg for short distances. Thanks to the double frame, it is available in four-height versions (from 2300 to 3300 mm), the EJC M13 ZT is ideally suited for occasional picking and distribution of goods , as well as stacking pallets. The advantage of this is the low height of the EJC M13 ZT chassis, which ensures optimum visibility of the fork ends even with a small operator growth. The compact design and short front length (l2) of this machine, only 535 mm, also provide high maneuverability.
Thanks to the use of a powerful three-phase motor that does not require maintenance, energy consumption has been reduced and the best prerequisites for fast and economically advantageous cargo handling have been created.
Gel battery with built-in charger allows you to flexibly operate the machine without adding water to the battery.
| Rated load capacity Q | 1,300 kg |
| Center of gravity c: | 600 mm |
| Fork length l: | 1 150 mm |
| Lifting height of forks h3: | 3 300 mm |
| Construction height h1: | 2 115 mm |
| Height of the extended mast: | 3 730 mm |
| Total length l1: | 1 880 mm |
| Total width b1: | 800 mm |
| Working travel width Ast europallets 1200x800 mm along: | 2 297 mm |
| Turning radius Wa: | 1 464 mm |
| Lifting speed with / without load: | 0,12 / 0,22 m / s |
| Lowering speed with / without load: | 0,15 / 0,12 m / s |
| Motion motor: | 0.6 kW |
| Lifting motor: | 2.2 kW |
| Gel battery maintenance-free: | 24V 105 Ah |
| Charger built-in: | 220 V |
| Stacker weight: | 596 kg |
| Fork height in lowered state | 85 mm |
