Silomer FB20
- Overview
- Reviews0
Brand of Sylomera |
FB20 |
Division price |
0,005N |
Weighing limit |
20N (~ 2kg) |
Measurement speed |
40 /second |
Maximum overload |
± 20% |
Slave. temperature range |
-10 ... + 40 ° C |
Type of indicator |
Graphic (61x34mm), 7mm |
Units of measure or |
(N, kgf, lbf, ozf) |
dimensions |
215x100x40mm |

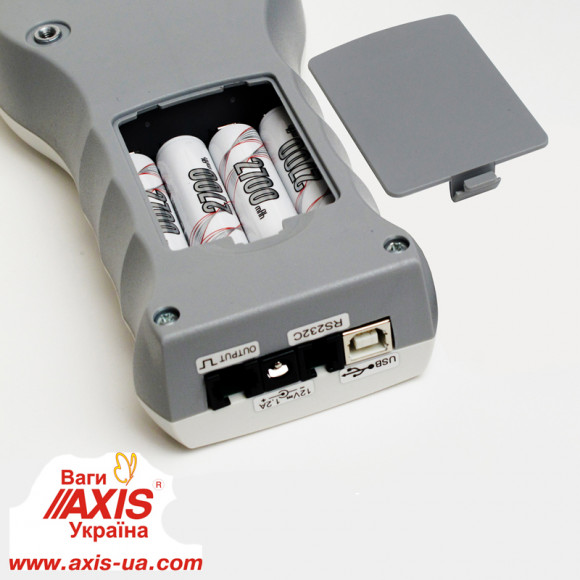

Battery life |
~ 45hours (~ 20hours from p_dsv_tkoyu) |

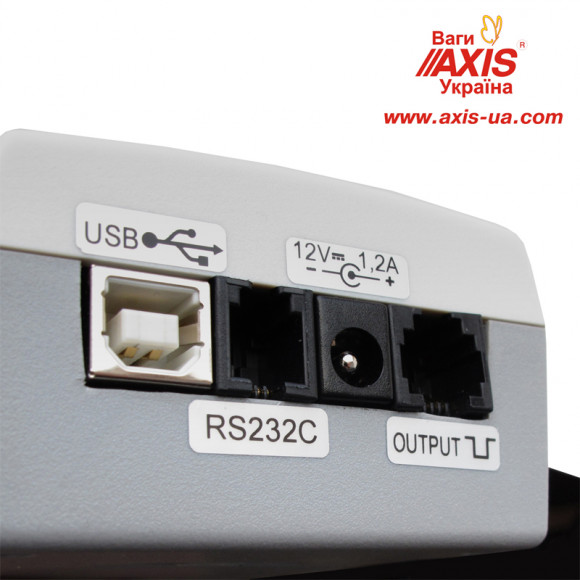

Interface |
RS232C, USB, microSD card slot |
Weight |
430g (without batteries) |

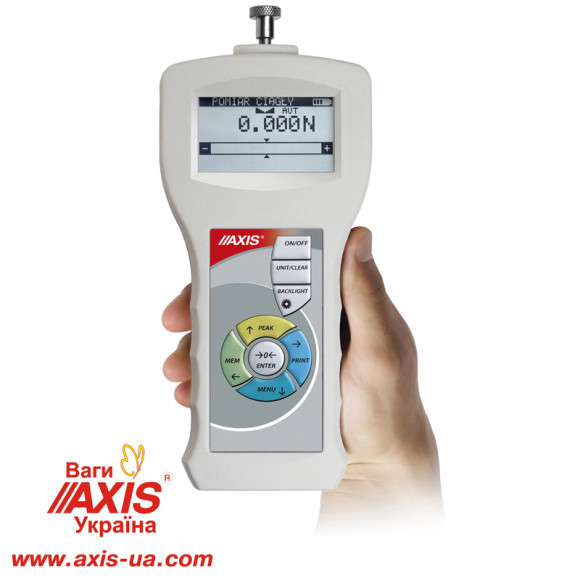

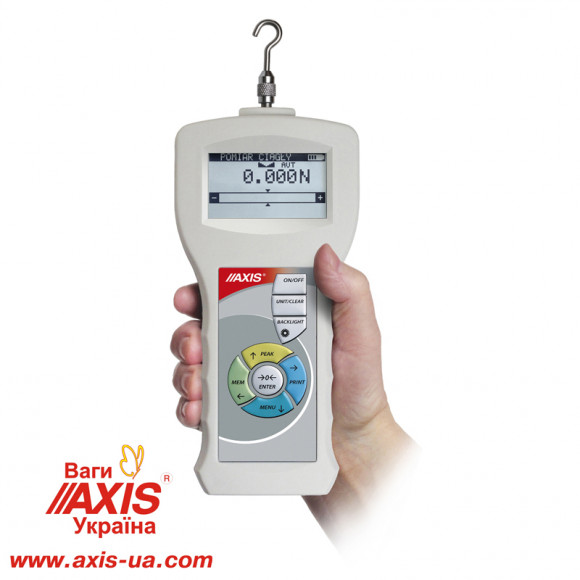

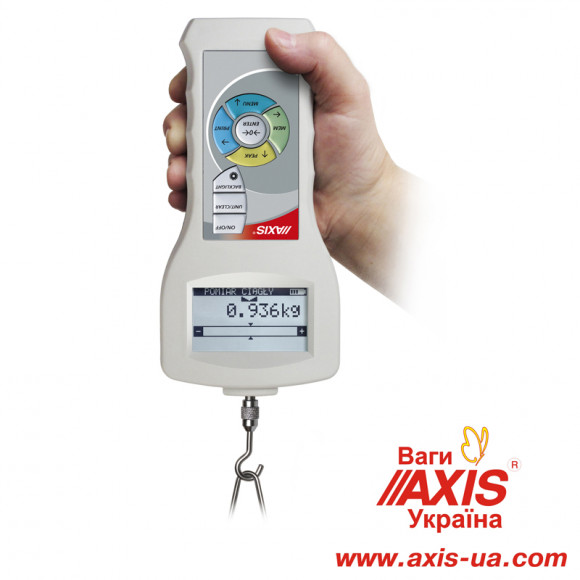

The FB series force meters are designed to measure pressure and thrust, as well as to measure weight, in specialized laboratories, manufacturing and quality control. It is characterized by ergonomic design and ease of use. The graphic display on the Silomery makes it easy to read the readings and present the result of measurements in the form of histograms and graphs. A special computer program opens up new possibilities for observing and measuring variable forces. You can connect a printer to Power meters to print the results. The device comes in a convenient case.
Standard Special Functions
- autonol;
- Determination of minimum, medium and large values;
- Comparing weighing results with specified limits Min /OK /Max;
- Statistical;
- Battery charge level;
- other.
AXIS FM program
(Allows you to process measurement data in real time (on-line) or pre-collected data from the memory meter (off-line).
AXIS FM is compatible with Windows XP, Vista, Windows 7 operating systems.
- Identification model Silomery;
- Obtaining information about measurements in real time;
- Transfer measurements from the memory Silomery in the program;
- Visualization of measurement results on the chart, as well as in statistics;
- Record measurement results and charts in the file system;
- Management of basic functions of the Power meters - for example. taring incl. and off;
- Visualization of the battery charge level.
