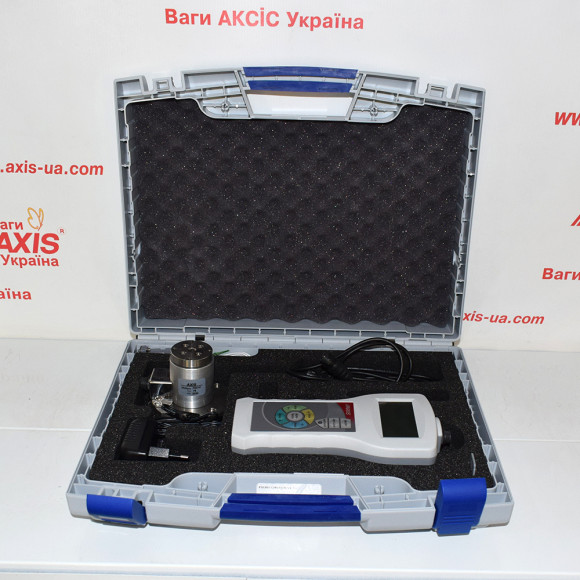

Strength meter FSC5
- Overview
- Characteristics
- Reviews0

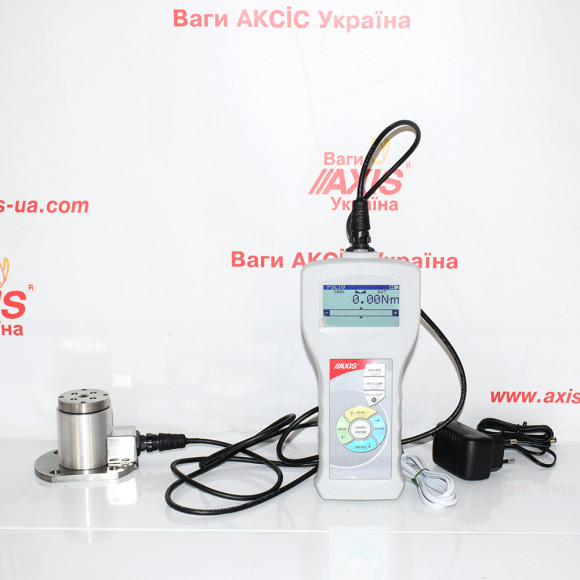

FSC is a series of torque meters that are designed for testing torque wrenches. They record the peak torque value. It is also possible to record the moment of force in real time. The force meter works in both directions. For measurement, the measuring head is placed motionless on the table and the key under test is connected through a 1/4-inch square hole (models FSC2, FSC5 and FSC10). When turning the key, the torque is displayed. The FSC100, FSC200 and FSC500 measuring heads do not include an adapter for the size of the wrench. The FSC100, FSC200 and FSC500 only include a force sensor.
Special features:
- maximum value measurement
- comparison with threshold
- statistics
- unit selection
| Brand of Sylomera |
FSC5 |
| Division price |
0.001Nm |
| Measurement limit |
5 Nm |
| Measurement speed |
1000/second |
| Maximum overload |
±50% |
| Slave. temperature range |
-10 ... + 40 ° C |
| Type of indicator |
Graphic (61x34mm), 7mm |
| Units of measure or |
(N, kgf, lbf, ozf) |
| Battery life |
~ 45hours (~ 20hours from p_dsv_tkoyu) |
| Interface |
RS232C, USB, microSD card slot |
| Weight |
430g (without batteries) |
| Brand | AXIS |
