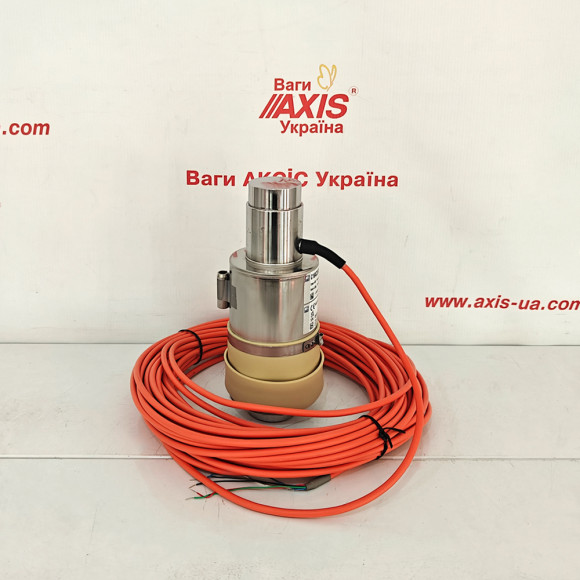

Strain gauge HBM C16A3C3 /20,30,40,60,100t

An analog C16A column type weight sensor with a maximum load from 20 tons to 400 tons. A commercially available weight sensor for commercial applications is available with various accuracy classes up to 5000 divisions (OIML D1, C3, C4, C5). The robust load cell design, together with a patented anti-rotation pin, provides ideal conditions for the use of a weight sensor in truck scales. IP68 protection class. Optionally, the C16A column type weight sensor is available with lightning protection.

Key features:

• Self-install function
• Maximum load: 20 tons ... 400 tons
• Easy installation
• Stainless steel, laser welding, IP68
• Verification for commercial use:
• Up to 5,000 divisions (OIML R60)
• Up to 10,000 divisions (NTEP class III LM)
• Optimization for parallel connection with angular correction
• Optimized for parallel connection by offset load compensation
• Compliance with EMC requirements in accordance with EN 45 501
• Intrinsically Safe ATEX 95 (optional)
