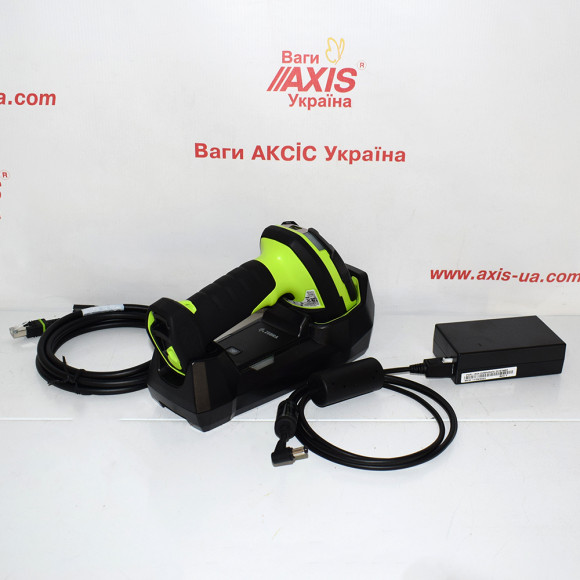

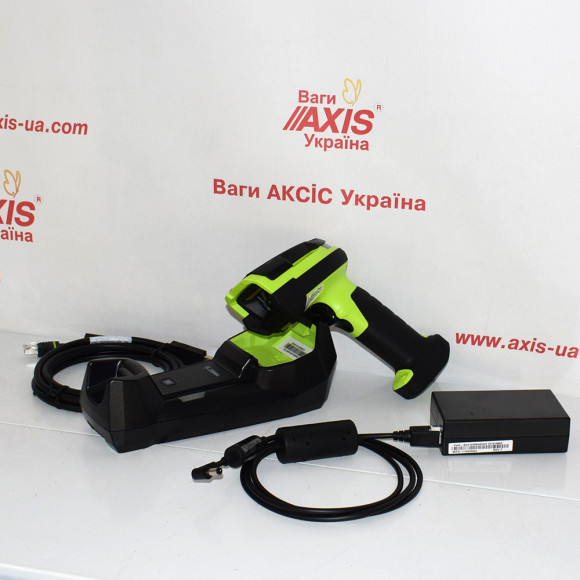

Introducing the high-performance Zebra (Symbol) DS3678-SR barcode scanner that will become an integral part of your business infrastructure, providing accuracy and efficiency when scanning a variety of barcode formats.
Main characteristics:
High scanning speed: Featuring advanced scanning technology, the DS3678-SR delivers fast and reliable barcode reading, even in high-volume environments.
Wide Reading Range: Designed to read barcodes on a variety of surfaces and lighting conditions, making it a versatile and reliable solution for a variety of sectors.
Impact Resistance: The dust and moisture resistant housing makes this scanner ideal for use in warehouse and manufacturing environments.
Long Battery Life: Integrated lithium-ion battery allows you to work for a long time without recharging, ensuring continuous performance.
Easy to set up and use Easy integration with other equipment, an intuitive interface and flexible settings options make this scanner easy to use.
Multi-Interface Support: The DS3678-SR provides compatibility with a variety of connection interfaces, allowing it to be integrated with a variety of hardware and software.
When you order the Zebra DS3678-SR Barcode Scanner, you are choosing a reliable tool to streamline processes and increase productivity in your business operations.
5 mil (Code 128): 3.3 - 17 cm; 20 mil (Code 128): 7.1 - 71.1 cm; 40 mil (Code 128): 4.4 - 152.4 cm; 7.5 mil (Datamatrix): 4.8 - 15.2 cm; 10 mil (Datamatrix): 3.5 - 21.8 cm
Min. Contrast code:
Minimum reflection difference 15%
Graphic resolution:
1280 x 800 pixels
Light source:
Backlight: One (1) 660 nm LED; Targeting device: LED 610nm
Incline:
± 60°
Deviation (along the axis):
± 60°
Turn:
± 360°
Image Capture Function:
Base
Field width:
Horizontal: 42°; vertical: 28°
Readout indication:
Direct decoding indicator; LED indicators; sound signal; vibration
Management interface:
USB
1D Barcodes:
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D Barcodes:
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Communications:
Bluetooth Class 1 Version 4.0 (LE), Serial and HID Profiles
Data transfer rate:
3 Mbps (2.1 Mbps) for standard Bluetooth mode; 1 Mbps (0.27 Mbps) for Bluetooth Low Energy mode
Radius of action:
Line of sight in open space: class 1: at least 100 m; class 2: not less than 10 m
Decodable codes:
Digimarc: Digital watermarking technology; IUID support: Support IUID parsing, reading and splitting IUID fields according to application requirements
Battery:
PowerPrecision+ 3100 mAh Li-ion rechargeable battery
Operating time without recharging:
Scan operations on a full charge: more than 100,000
Memory:
there is
Stand:
Included, Included
Shock resistance:
Withstands repeated drops onto concrete from a height of 3 m at room temperature; Withstands repeated drops from a height of 2.4 m onto concrete at temperatures from -20°C to +50°C; Rollover resistance: 7500 rollovers from a height of 1 m
Protection from environmental influences:
Scanner: IP65 and IP68 in accordance with IEC sealing requirements; FLB base station: IP65 protection
Working temperature:
-20 ° C - + 50 ° C
Humidity:
5% - 95% non-condensing
Food:
Input Voltage Range: Host Power: 4.5 VDC (Min), 5.5 VDC (Max); External power supply: 11.4 VDC VDC (min.), 12.6 VDC current (max.)
Dimensions:
185 x 76 x 142 mm
The weight:
407 g
Colour:
Black-green
Other:
Multiinterface scanner. Operating mode with USB interface (USB-HID and USB-VC). Replacement cable
Options:
Cradle STB3678, USB cable
Programming possibilities:
Scanner Software Development Kit (SDK)
Software:
123Scan, Scanner Management Service (SMS), Network Connect
Electric discharge protection:
According to EN61000-4-2, ±25 kV (air), ±10 kV (direct), ±10 kV (non-contact)
Compliance:
Electrical Safety: EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International regulations: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 LED safety: Compliance with international LED regulations
